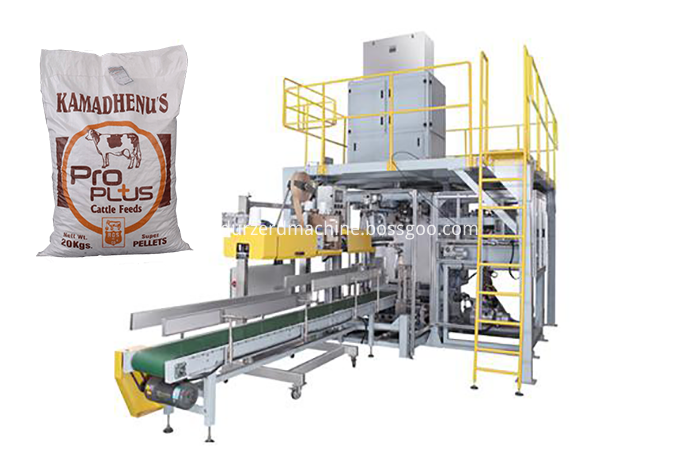

Open mouth bagging machine for 25kg granule and powder materials
Working processing from 25kg raw material supplying, auto weighing filling, auto bag feeding, auto open mouth bagging, auto bag moving, auto bag sealing, finished products output. At the same time, in order to achieve full automation of the production line, Robot Palletizer Line or High Level Palletizer can also be added.
1. This 25 kg salt bagging machine is widely applied in food industry(rice, beans, sugar, corns ), chemical industry, feed, grain, seed, salt, sugar, pet foods, flour and other Industries with paper bag, plastic bag, etc.
2. Automatic supplying bags can be high-speed and continuous.
3. Every execution unit includes control & safety device to make the equipment run automatically and continuously.
4. The motor manufactured by SEW make the equipment more efficient.
5. This 25kg salt bagging machine has functions such as automatic weighing, bag feeding, automatic filling, automatic bag delivery, and automatic sealing. It can be linked with equipment to process all kinds of granular and flake materials to realize unmanned production of large packaging.

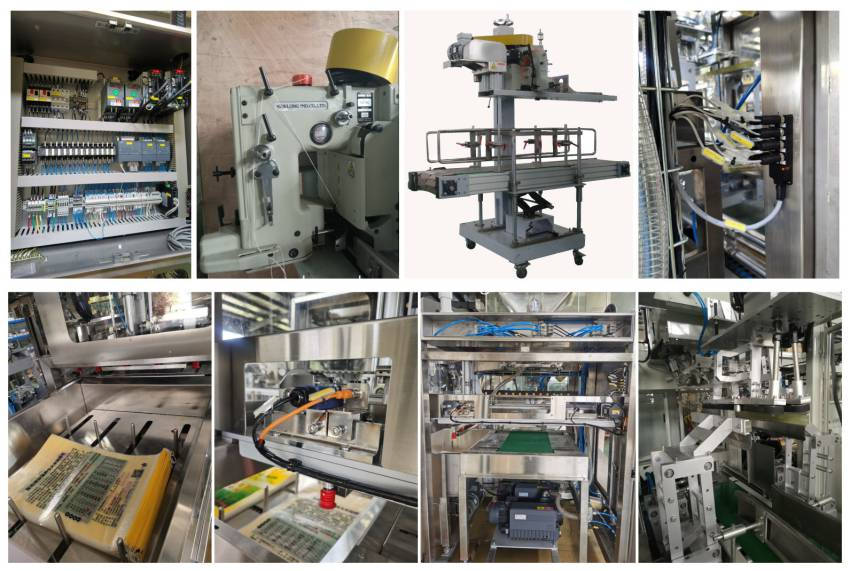

The whole system consists of the following parts:
1.High speed servo control weighing machine
2.Auto bag feeding and packing machine with electric control box
3.Automatic Stitching /sewing/heating/paper taping sealing machine(Stitching Machine with NEWLONG stitching head)
4.Plat form(painted steel or stainless steel 304)
The open mouth auto bagging machine filling weight range from 10-25kg for each bag, and can supply about 550-650 bags/h or high speed model 800-1000bags/h.
Automatic supplying bags can be high-speed and continuous.
Every execution unit includes control & safety device to make the equipment run automatically and continuously.
The motor manufactured by SEW make the equipment more efficient.
The equipment is widely applied in chemical industry, feed, grain, seed, salt, sugar, pet foods, flour and other powder Industries with paper bag, plastic bag, etc. So this machine can also be customized as 25 kg rice packing machine and Fertilizer Bagging Machine.
Work Flow Chart:
Bag Supplying Machine→Take Empty Bag→Open Empty Bag→Bag Clamping and Feeding Mechanism→Bag Bottom Flapping Mechanism→Bag Horizontal Moving & Pocket Mouth Clamping Mechanism→Standing Bag Conveyor→Auto bag folding and sewing→Finished bag
Automatic 25KG Bagging Packing Machine Detailed description
550-650 bags/h or high speed model 800-1000bags/h
Bag storage capacity
three-phase four (five) wire system, 380V, 50HZ, 7KW
Air source used
clean, dry, oil-free and dust-free, 0.5-0.7MPa, 8000NL/Min
heat sealing inner bag + seam outer bag
Packing bag type
Premade open-mouth bag
Packing bag material
paper bag, polyethylene coated paper bag, PE inner film paper bag, aluminum foil paper bag, PE bag, polypropylene fiber bag,Coated fiber bag, PE inner film fiber bag
Packing bag shape
flat bag, flat bottom bag
