New Design Pharmaceutical Grinding Machinery

New Design Pharmaceutical Grinding Machinery

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Wood Box
    Productivity: 30-50 Set per Year
    Brand: Hywell
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 5-10 Set/Sets per Year
    Certificate: ISO

Basic Info

Model No.: WF

Type: Crude Drug Equipment

Finished Dosage Form: Granules

Precision: Precision

Certification: GMP, ISO

Voltage: 380V

Computerized: Computerized

Customized: Customized

Condition: New

Warranty: 1 Year

Grinding Machine: Superfine Grinding Machine

Fine Powder Grinder: Dry Powder Grinder

Dry Powder Pulverizer: Pharmaceutical Grinding Machine

Product Description

New Design Pharmaceutical Grinding Machinery


1. WF grinding machine is Pharmaceutical Grinding Machinery

2. Superfine Grinding Machine made by all stainless steel

3. Superfine Grinding Machine is Pharmaceutical Grinding Machine

4. Superfine Grinding Machine is Pharmaceutical Powder Grinder

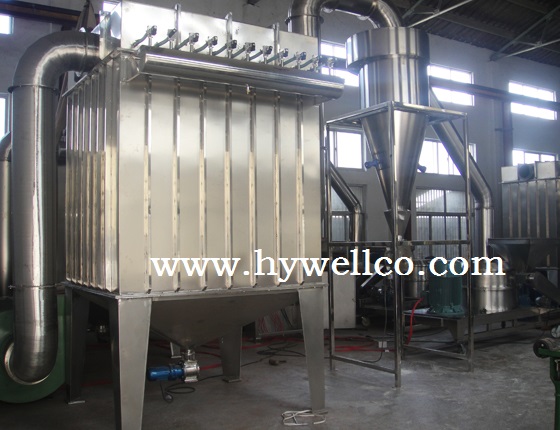

Pharmaceutical Powder Grinder Working Principle

The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharged by bag type collector, and the dust is filtered and recovered by dust collector through filter barrel having no dust flying during production, it can improve utilization rate of the material and reduce the cost of enterprise


Product Application:

Chemical industry : Resin powder , paint , detergent powder ,paint ,Soda ash ,lemon Powder ,rubber ,plastic and so on .
Food industry : sugar ,salt ,alkali ,monosodium glutamate ,milk powder ,milk ,yeast ,fruit juice ,soy sauce ,vinegar.
Paper industry : Coating paint ,clay ,mud , black and white liquid ,waste water recycling .
Pharmaceutical industry : the powder , western medicine powder ,western medicine, Chinese and Western medicine particles .

Attention to order
1. When order the WF supper fine crusher, Client need to supply the materials name.

2. When order the WF supper fine crusher, Client need to supply the materials characteristic that include materials HP and so on.

3. When order the WF supper fine crusher, Client need to supply how much kinds materials size need to separated

4. When order the WF supper fine crusher, Client need to supply the each kinds separated materials size.

5. When order the WF supper fine crusher, Client need to decide which kinds steel for machine-304 stainless steel or 316L stainless steel (Hywell also give suggestion for the stainless steel model base the materials HP).


Model capacity Size of input materials Size of output materials Motor power Speed Overall dimension Weight
WF-15 20-200kg/h <10mm 80-1000mesh 13.5kw ~5800rpm 4200*1200*2700mm 1100kg
WF-18 30-450kg/h <10mm 80-1000mesh 19.8kw ~5800rpm 4500*1200*2700mm 1300kg
WF-30 50-750kg/h <10mm 80-1000mesh 46kw ~5800rpm 6400*1300*3960mm 1800kg
WF-60 80-1000kg/h <10mm 80-1000mesh 84.15kw ~5800rpm 7500*2300*4200mm 3200kg
WF-80 100-1300kg/h <10mm 80-1000mesh 90.17kw 1400r/min 7500*2500*4200mm 4000kg
Pharmaceutical Powder Grinder

  • 1
  • 2
  • 3
  • 4
  • 5
 Hywell is professional manufacturer for drying machine, mixing machine, granulating machine and grinding machine.From dryer, mixer to granulator, from unit machine to production line, we have them all. Hywell is a Chinese supplier of industrial dryer, mixer, granulator. our flagship products include the hot air dryer, microwave dryer, vacuum dryer, one dimensional mixer, two dimensional mixer, three dimensional mixer, and granulator and so on.......
